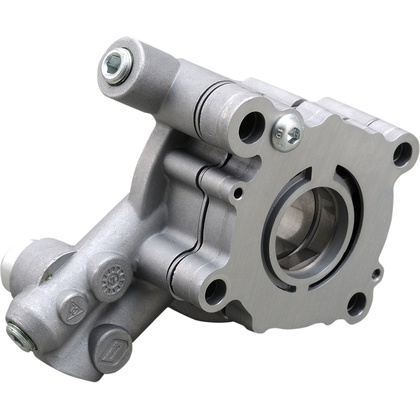

Help to reduce oil carryover during high rpm operation; higher volume helps reduce engine and oil temperatures
53mm diameter rotors for maximum performance
Compared to TC88 oil pumps, expect a gain of 20% oil pressure, 125% pressure volume and 135% scavenge volume over OEM stock
On TC96, provides a gain of 16% oil pressure, 66% pressure volume and 100% scavenge volume over OEM stock
High quality die-cast aluminum body construction, high strength steel gear construction
Fits both stock and aftermarket cam support plates for seamless installation
Product Note:
Specification
Details
Engine Type
Twin Cam
Finish
Unfinished
Material
Aluminum
Vehicle Fitment
Fitment is guaranteed or your money back plus free return shipping.
Don’t waste time installing a product that doesn't fit. We worked hard ensuring that this product is an exact fit on the vehicles listed below.
Will this replace the stock pump 2018 M8 107ci Air cooled engine
By William F.
will I need anything additional?
These oil pumps will fit any machine you select from our fit guide, we guarantee it. With regard to additional components, typically, installation is just a basic swap of the oil pump housing and no additional parts are needed to get the job done.
does this pump come with new o-rings for installation
By bestus
This pump does not utilize an O-ring at the face of the pump where it mates to the camplate. It includes four new screws, you are not to reuse the original screws from the factory HD oil pump. Provided your cam plate has a smooth blemish-free surface, you would have no issue with sealing of this pump, it is designed to seal with a perfectly machined surface. You would still need an O-ring where it mates into the crankcases, it is not included with this pump.
will this oil pump work on a 2001 road king 88ci that had a stock cam plate?
By mike
Asking because the stock oil pump has a o ring on it where it connects to the back of the cam plate and this high volume oil pump doesn't have a o ring
The Drag Specialties Road King high-performance oil pump is machined flat to work with the stock cam plate without the o-ring. Provided there was not a bearing failure to cause damage to the Road King's cam plate, you should have no problem installing this in your machine. The included installation instructions clearly explain everything you need to know in order to properly install this oil pump.
Can the oil pump on a 2002 springer sump and let oil tank oil fill engine after sitting a while?
By D
This oil pump does include check valves and springs, just like the stock 2002 FLSTS oil pump - to prevent wet sumping. With any check valve or oil pump, over time the spring may weaken and cause wet sumping, so you should replace those parts at intervals as recommended by the service manual. Another helpful thing to do if the bike has been sitting for a while, is to check engine oil level after the engine is at operating temperature since non-use can also cause wet sumping.
Verified Purchaser
